23″ Healthcare shower seat

Description

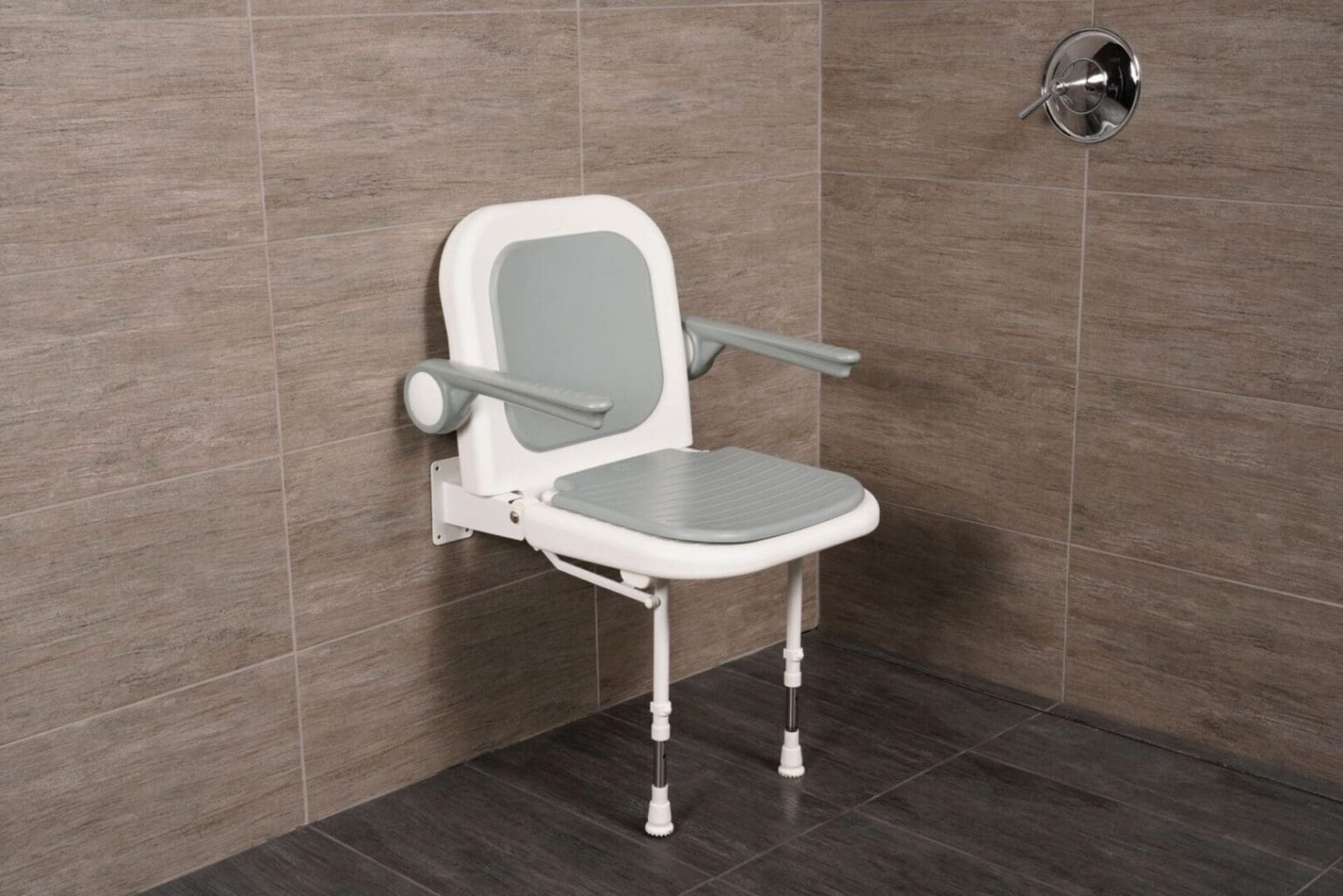

23″ Wide gray padded fold-up shower seat with backrest,
fold-up arms, & (2) adjustable legs. Seat supports up to 560
lbs. when properly installed. Each arm supports up to 122
lbs. to assist user when entering or exiting seat (do not sit
or stand on arms). Lower leg sections are adjustable in 3/4″
increments; nearly 10″ range of height adjustment.

Physical Characteristics
a. aluminum frame and legs
b. powder-coated frame and upper leg sections
c. molded polyethylene seat, back, mounting bracket, and arms
d. closed cell polyurethane pads on seat, back, and arms; includes seat pad retainers and plugs
e. adjustable leg height
f. rubber feet
g. one foot has fine height adjustment feature
h. seat and arms swing independently to fold against wall
i. color: white frame, seat, back, upper legs, feet, and mounting bracket; polished aluminum lower legs;
gray pads
j. weight: approximately 16 lbs.
k. fasteners not included due to the vast variety of wall and blocking types and thicknesses

Performance Characteristics
a. supports up to 348 lbs. when properly installed (rating based on seated user; do not stand on seat)
b. each arm will support up to 122 lbs.
c. lower leg sections are adjustable in 3/4″ increments ; 5″ range of height adjustment
d. adjust height to suit user before mounting to wall

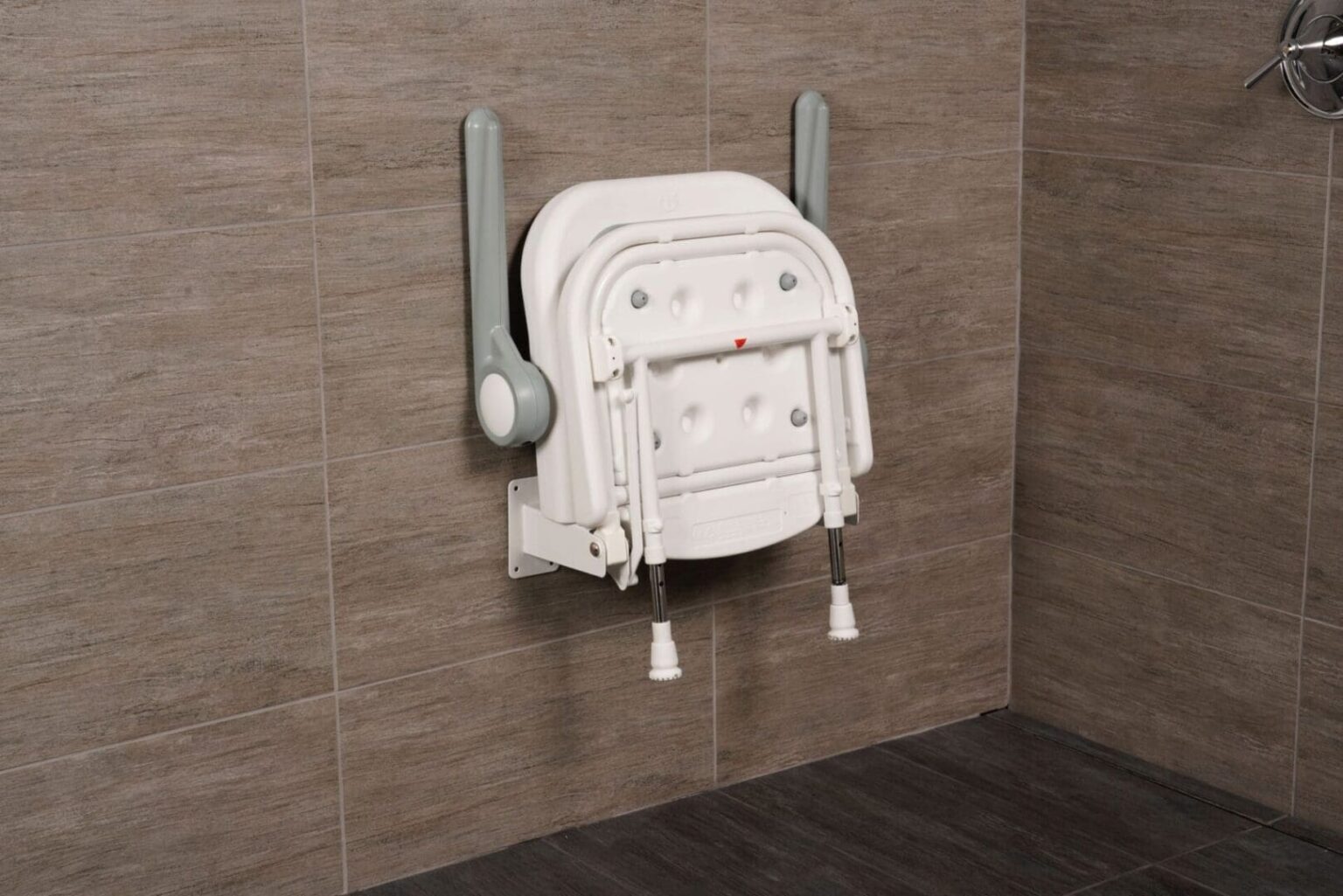

e. hinged seat swings past 90° to remain in folded, upright position
f. seat must be mounted so that it is level in all directions and remains in a 90° orientation to the legs
g. seat must be mounted to substantial, well-secured blocking, usually of 2× solid wood (toenailing is not sufficient;
use cleats or notch blocking into studs, and fasten with screws), though brick, concrete, or concrete
block are also be suitable mounting materials (use suitable anchors)
h. #10 round head fasteners recommended (do not use flat head type fasteners); use stainless steel fasteners in
wet area installations; each fastener must be capable of withstanding 77 lbs. of pull-out force; the length of
fasteners will depend on the distance to drive them deeply into an appropriately reinforced material capable
of supporting the load; drive a properly sized fastener into every mounting bracket pilot hole
i. fine height adjustment allows compensation for slope of floor (+⁄- 1/2″ range of adjustability)
j. the fine height adjustment hex nut must be checked regularly to ensure that it is tight; a loose nut on the
fine height adjustment will allow the leg height to change, which will alter the orientation of the seat to the
legs, potentially affecting the performance, integrity, and durability of the shower seat
k. closed cell foam pads will not absorb water
l. seat and back pads are removable; seat may be used with or without seat and back pads; retainers secure
pad to seat; plugs fill holes in seat for pad if user foregoes installation of the pad
m. hole in seat allows water drainage
n. for interior installations only
o. clean and disinfect regularly; pad will not absorb water, however water, soap, and other materials trapped
underneath the pad may result in the onset of mold or mildew; use a mild detergent; do not use abrasive
pads, or strong acidic, alkaline or other harsh cleaning materials as this may cause discoloration; after cleaning,
always flush with water

Other Information
a. manufacturer’s warranty: 10-year for residential installations, 5-year for commercial installations
